Our Products / Conveyor Belt · Surface Patterns
The surface is the spec.
60 patterns deep.
Grip, release, drainage, easy-clean — engineered into the working face of the belt, not bolted on after. Every BOSHUN roll material can be produced in sixty standard patterns, with custom patterns on request.
Why the face matters
Four jobs a pattern does
The pattern is the only part of the belt that touches the product. Choosing it is an engineering decision — this library is sized to make it properly.
Incline without cleats.
High-friction patterns hold product on slopes where a smooth belt would slip — often with no welded profiles required.
Clean release.
Non-adhesive and low-friction faces let sticky, delicate or hygiene-sensitive goods leave the belt cleanly.
Wash down fast.
Stud, rib and nipple geometries drain freely and clean quickly — built for food, tobacco and wet processing lines.
Custom patterns.
The library is the starting point, not the limit — we engineer custom patterns for applications none of the sixty cover.
19 patterns
Grip & Incline
Patterns engineered to hold product through slopes, acceleration and transfer points.
Rough Top
No. 3- Logistics
- Airport
Round Nipple
No. 4- Marble
- Roller wrapping
Coarse Texture
No. 5- Logistics
- Treadmill
Saw Tooth
No. 6- Poultry
- Seafood processing
Wavy Rough Top
No. 9- Logistics
- Airport
Staggered Herringbone
No. 10- Agriculture
Crescent
No. 11- Poultry
- Seafood processing
Mini Grip
No. 12- Logistics
- Treadmill
Fishbone
No. 14- Wood
- Seafood processing
Latitudinal Fishbone
No. 16- Glass
- Poultry
- Fish processing
Longitudinal Rib
No. 19- Logistics
- Airport
Lattice
No. 24- Airport
- Logistics
- Textile

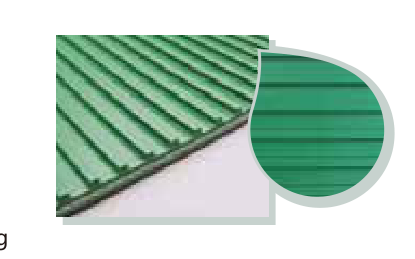

Cross Rib
No. 32

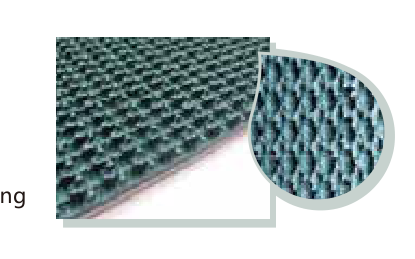

Super Grip Fabric
No. 45
Y Pattern
No. 49- Marble processing

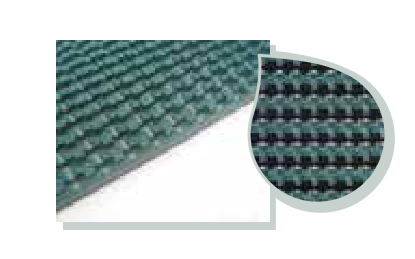

Super Grip
No. 50

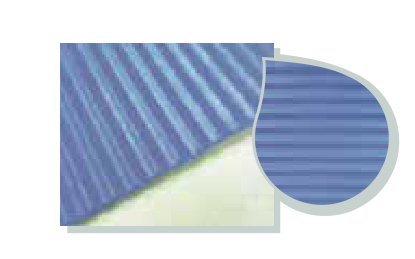

Small Saw Tooth
No. 57

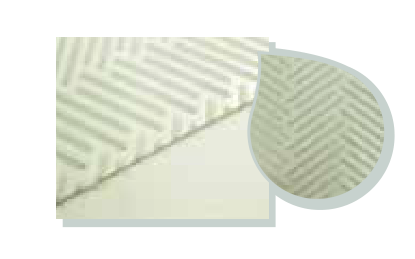

Small Fishbone
No. 61

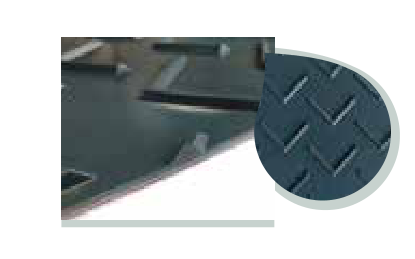

V Pattern
No. V- Food processing
12 patterns
Low-Friction & Release
Non-adhesive and low-friction faces for sticky, delicate or hygiene-sensitive goods.
Matt
No. 0- General
Diamond
No. 1- Logistics
- Food processing

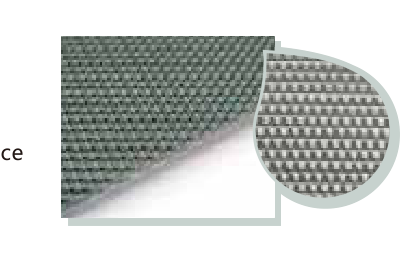

Rough Fabric
No. 2- General
Golf
No. 7- Logistics
- Treadmill
Small Golf
No. 15- Marble processing
Shallow Diamond
No. 17- Treadmill
Low Grip
No. 25- Marble processing
Smooth Fabric
No. 26- General
Sandblast
No. 31- Logistics
- Treadmill
- Roller wrapping

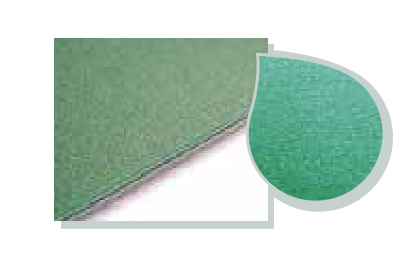

Rough Matt
No. 33- General

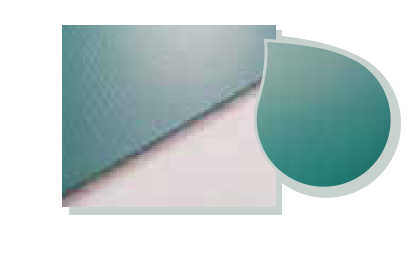

Fine Matt
No. 42- General
Amoeba
No. 60- Treadmill
12 patterns
Studs & Nipples
Raised contact points that wash down fast, drain freely and handle product gently.
Long Stud
No. 8- Tobacco
Staggered Stud
No. 27- Tobacco
Capsule Stud
No. 28- Wood processing
Small Nipple
No. 35- Bakeries
- Laundry
- Roller wrapping

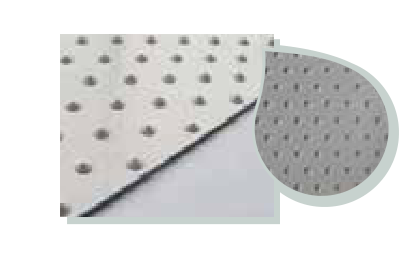

Sharp Nipple
No. 36- Poultry
- Seafood processing

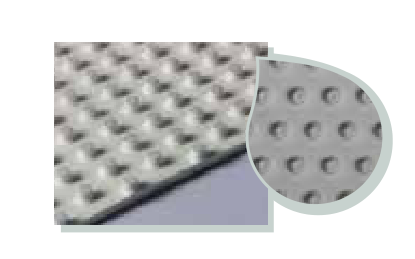

Big Nipple
No. 37- Agriculture
- Roller wrapping

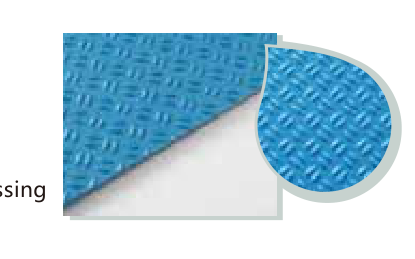

Rice
No. 44- Seafood processing

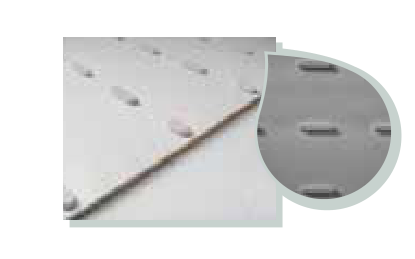

Game Coin
No. 46- General

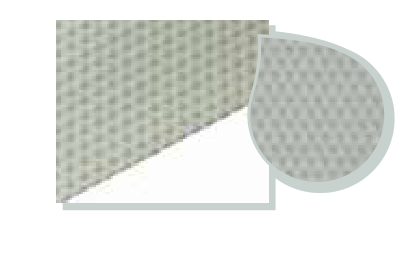

Granule Profile
No. 52

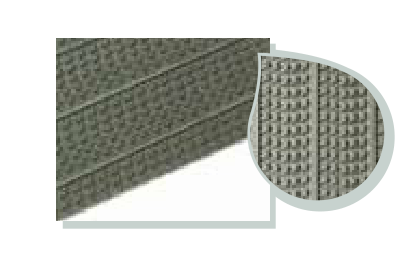

Wavy Square Nipple
No. 54
Oval Stud
No. T- Tobacco
Round Stud
No. C- Tobacco
17 patterns
Geometric & Specialty
Application-driven textures — from wood and marble processing to chocolate and treadmills.

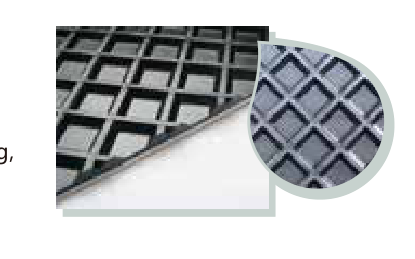

Square
No. 13- Wood processing
Leather
No. 20- Treadmill
Big Square
No. 22- Airport
Tooth (one direction)
No. 23- Marble processing

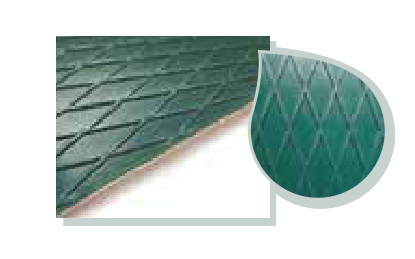

Small Rhombus
No. 29- General

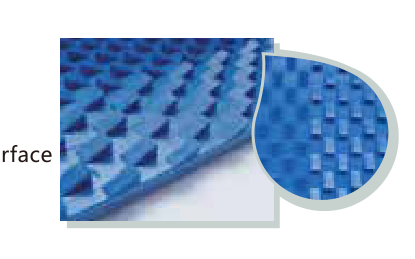

Tooth (two-direction)
No. 34- Marble processing

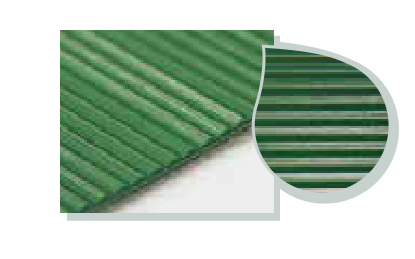

Triangle
No. 38- Food
- Tobacco

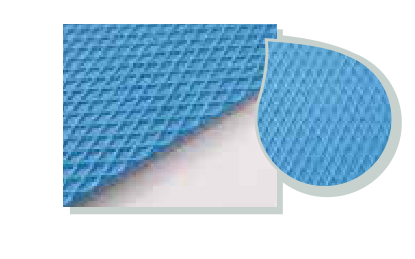

Small Shallow Diamond
No. 39- Bakeries
- Chocolate

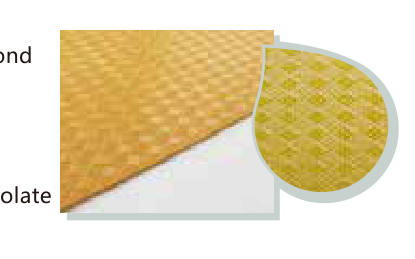

Harlequin
No. 40- Chocolate

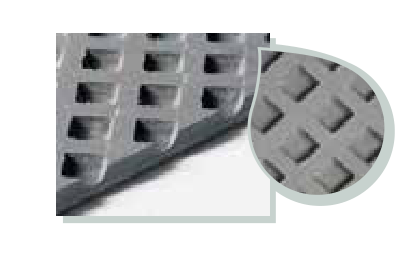

Grinding Square
No. 43- Wood processing

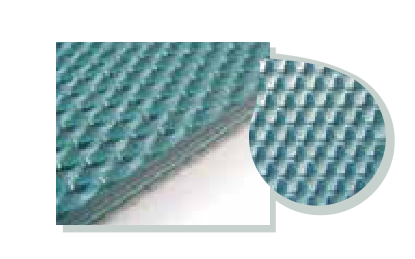

Mini Grip Fabric
No. 48

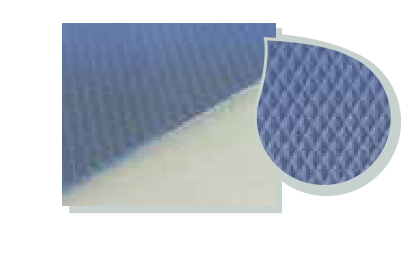

Small Diamond
No. 51

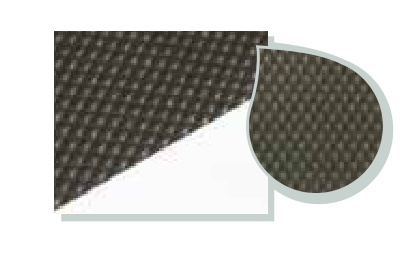

Convex Rhombus
No. 53

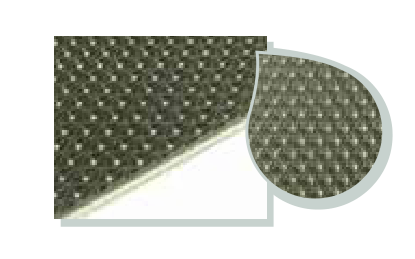

Shallow Golf
No. 56- Treadmill

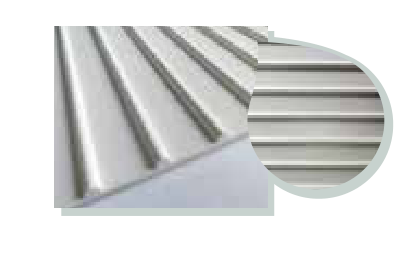

Transversal
No. 71- Food

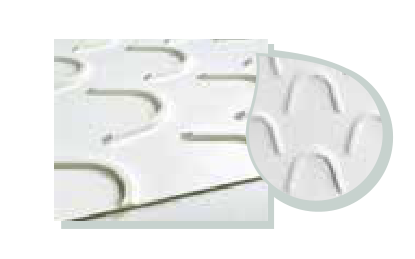

Horseshoe
No. 76- Food

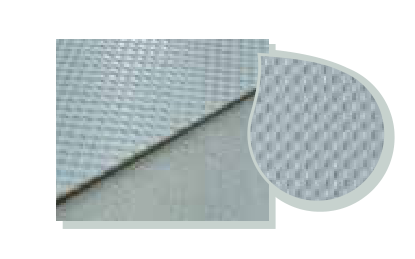

Rhythm
No. 101- Food
Need a surface none of the sixty covers?
Tell us the product, the incline and the line conditions — we will match a standard pattern or engineer a custom one, and quote it with your roll material.
